Cleaning the SpinnerOne rear hub
This guide applies to the SpinnerOne single-speed rear hub fitted to the Booda Pilot, Atlas, Sander and Astro. It explains how to clean the removable sprocket interface and apply a little oil before refitting it.
Tools and materials
Section titled “Tools and materials”- brake cleaner
- Rohloff oil
- a clean cloth or paper towel
1. Remove the sprocket unit
Section titled “1. Remove the sprocket unit”

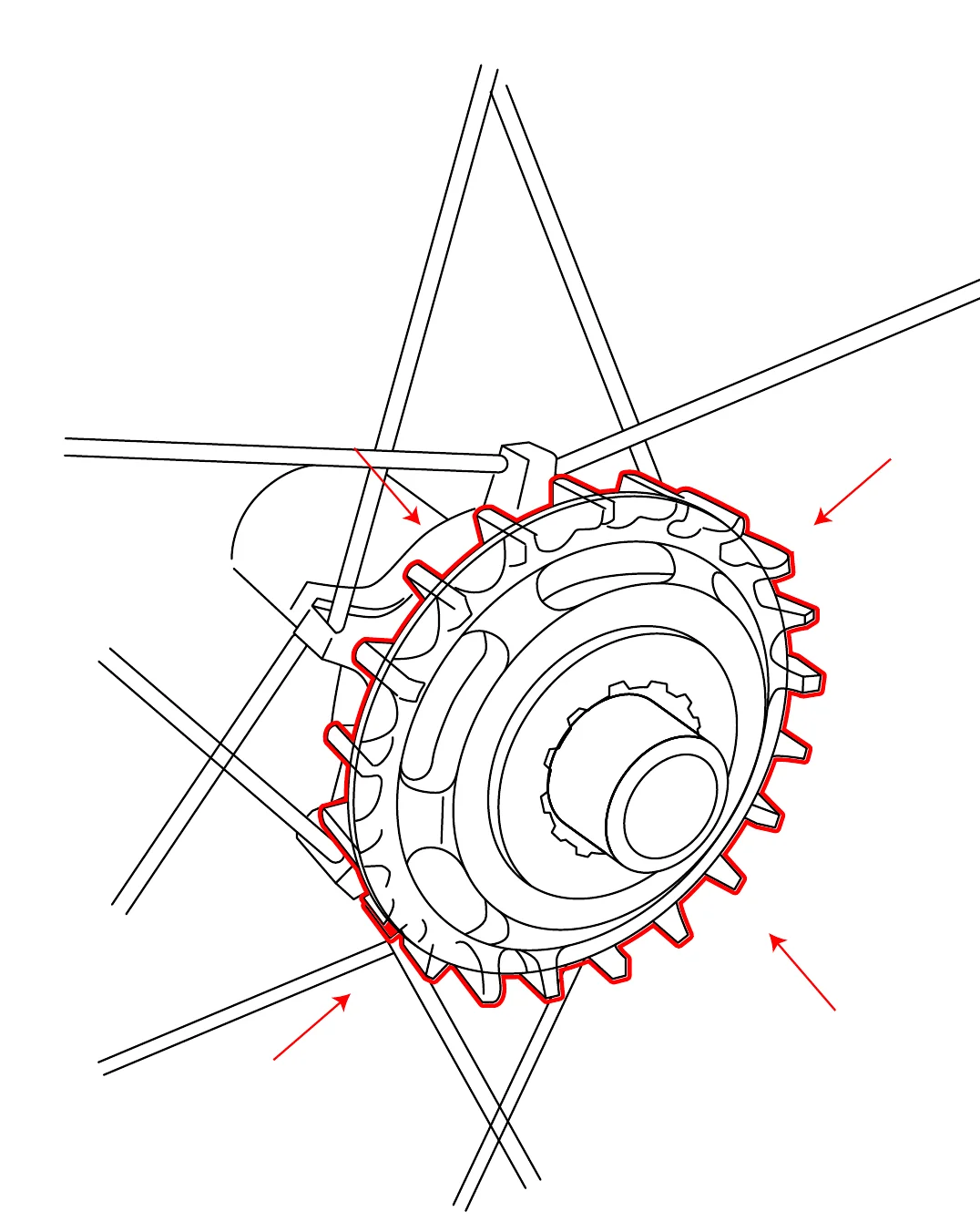

Grip the rear sprocket by its outer rim and pull it away from the hub firmly.
If it does not move, turn the sprocket slightly and pull again, applying more force to one side.

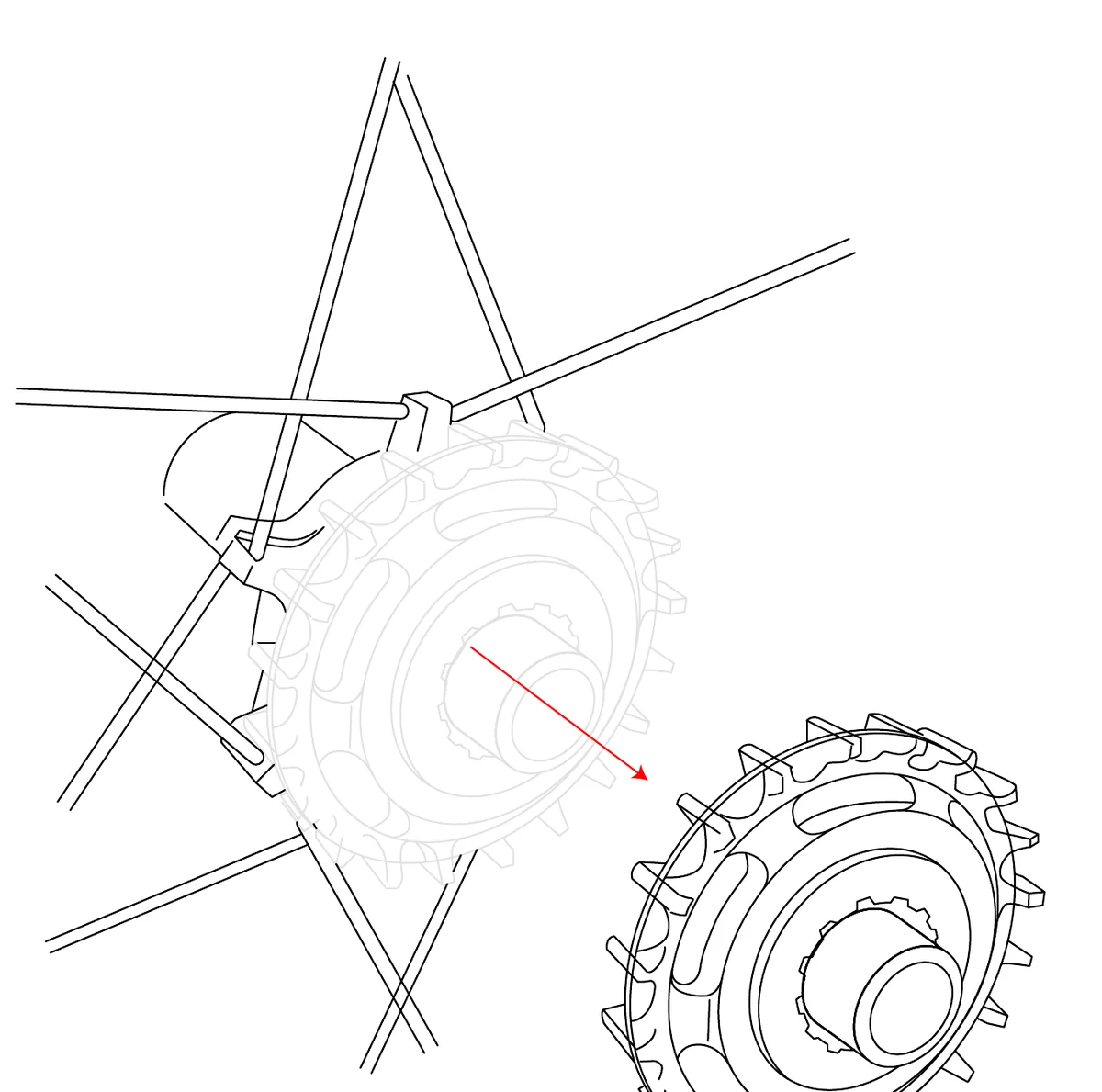

The removable hub centre comes out together with the sprocket.
2. Clean the ribbed inner surface

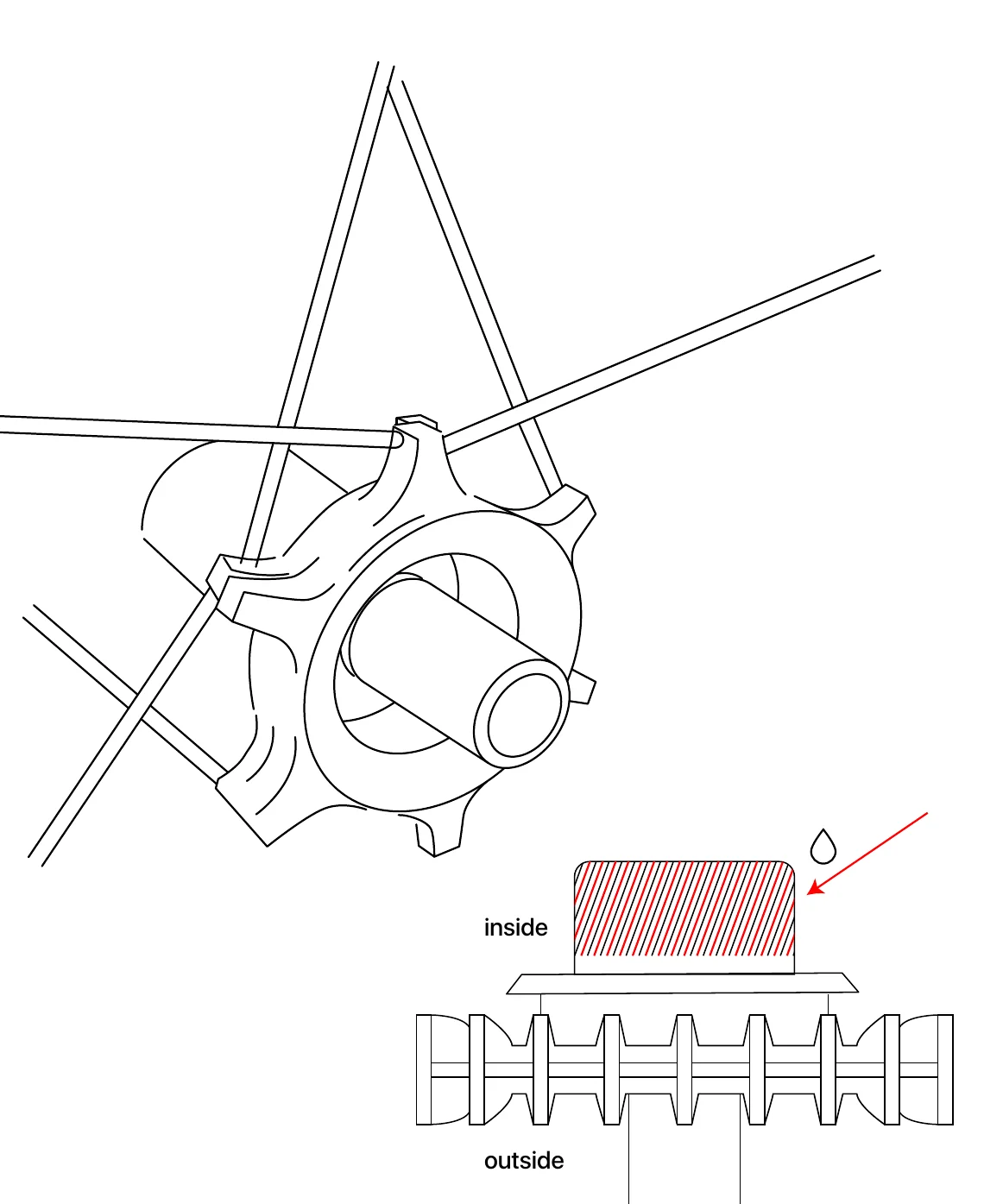

Section titled “2. Clean the ribbed inner surface”Clean the ribbed inner surface of the removed hub centre with brake cleaner. Wipe off dirt, old residue and excess cleaner.
3. Apply oil
Section titled “3. Apply oil”
Apply 3–4 drops of Rohloff oil to the cleaned, ribbed inner surface. Do not over-oil it.
4. Refit the sprocket unit
Section titled “4. Refit the sprocket unit”

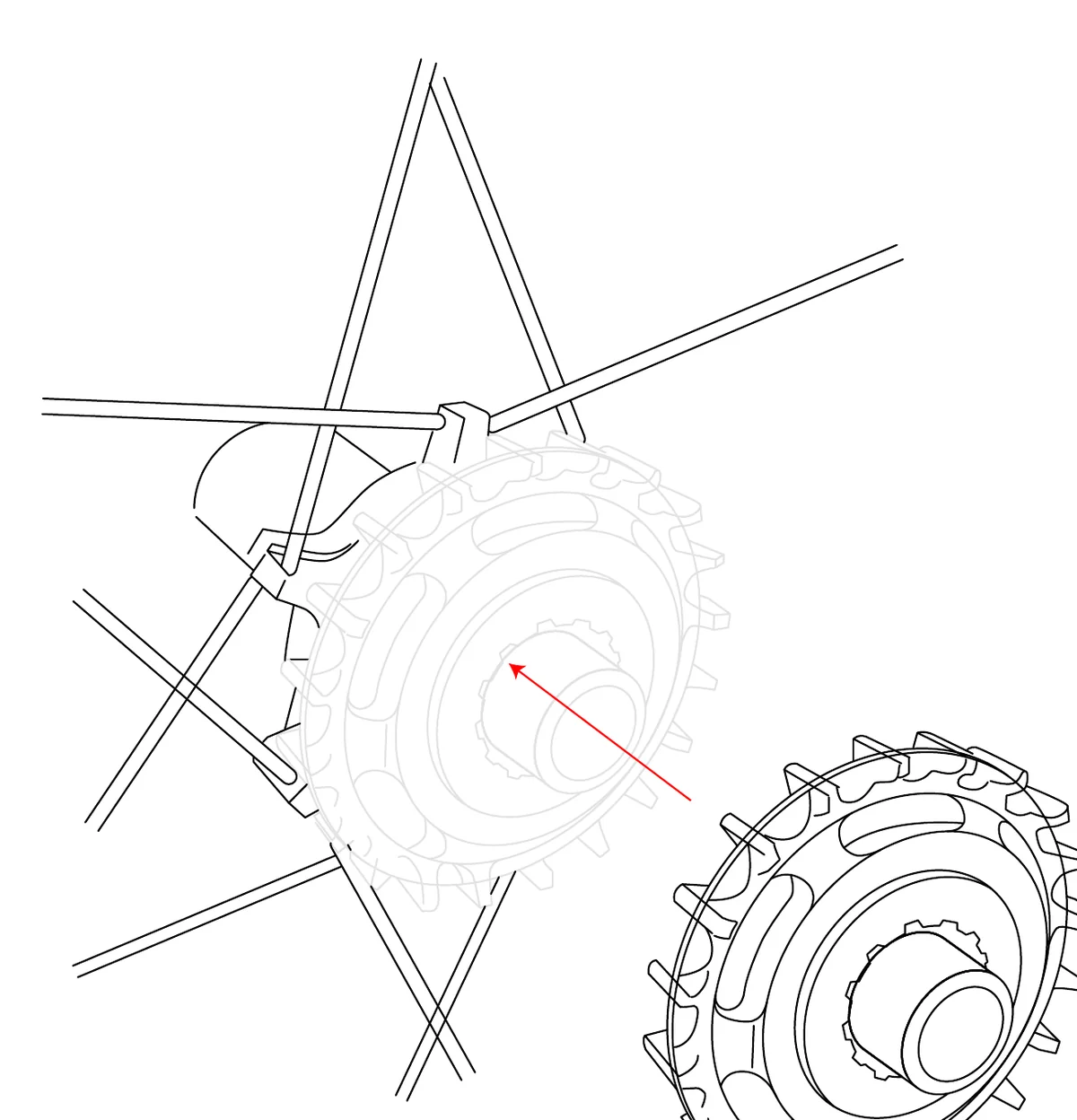

Place the hub centre back onto the rear hub and push it on firmly. Make sure it is fully seated.
5. Refit the hub cap
Section titled “5. Refit the hub cap”

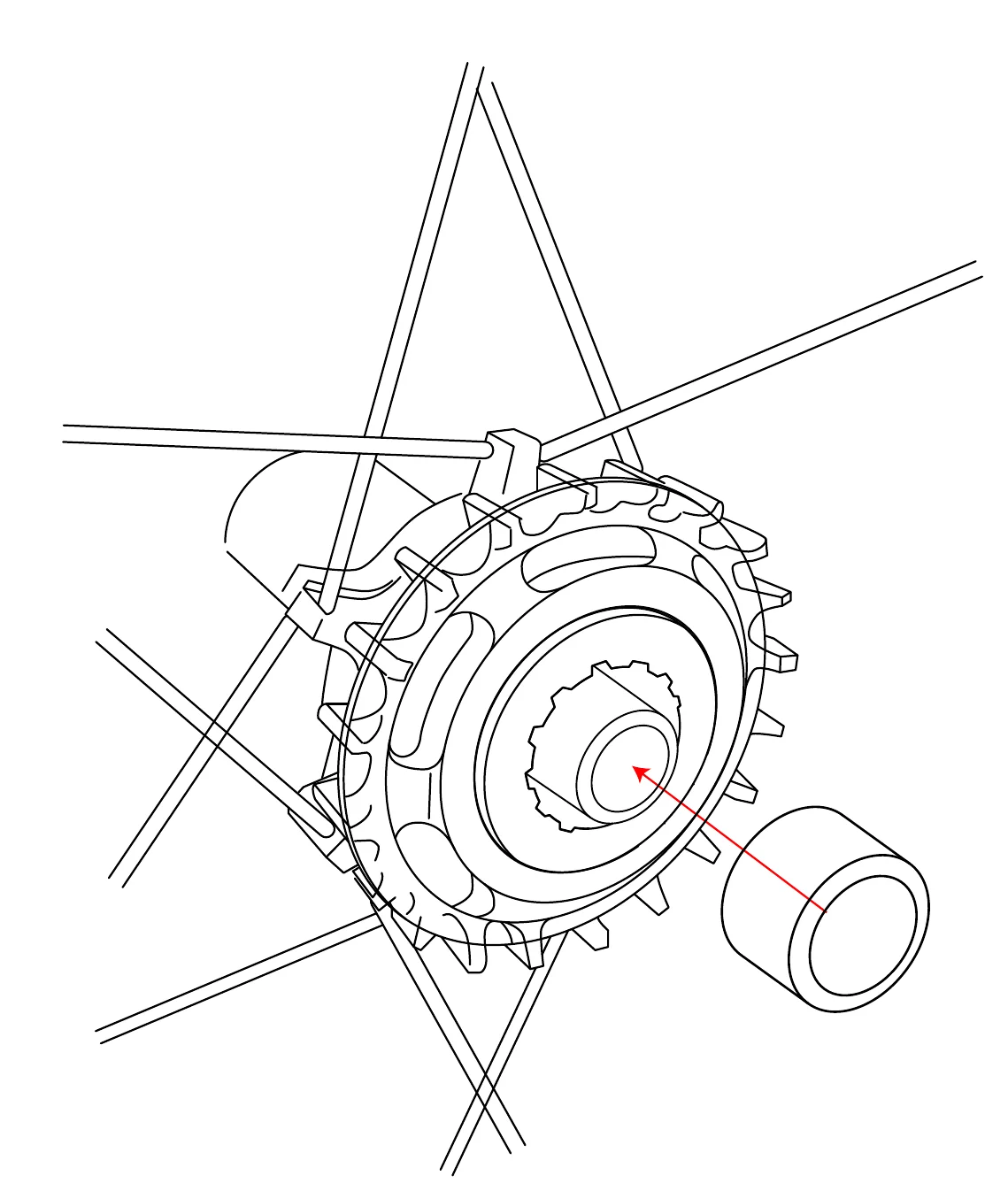

Place the hub cap back onto the axle side of the rear hub.
Final check
Section titled “Final check”Before riding:

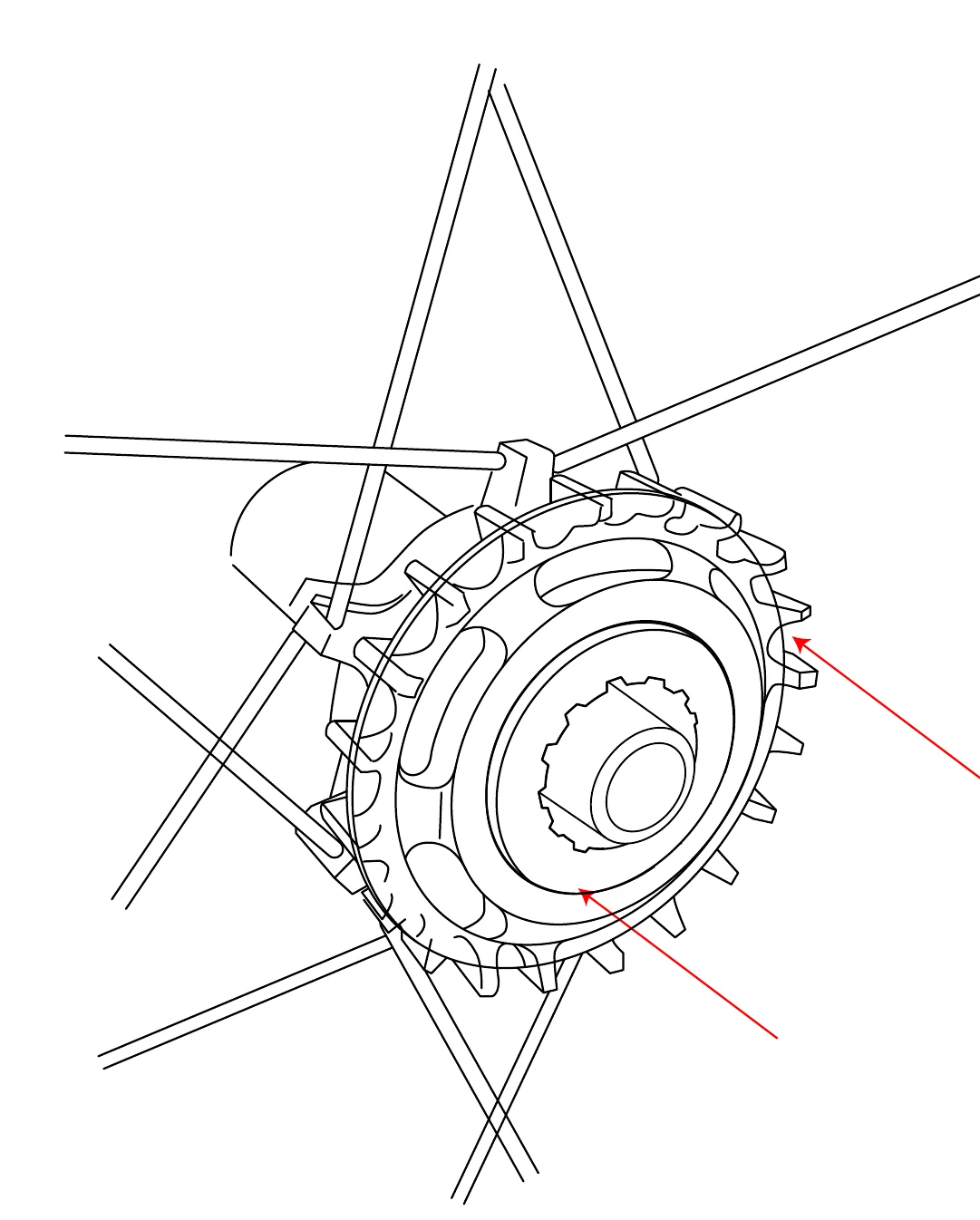

- Check that the sprocket unit is fully seated.
- Check that the hub cap is fitted.
- Turn the rear wheel by hand.
- Turn the cranks 10–15 times and check that the belt runs straight. See Belt alignment.
- Check that no oil or cleaner has reached the brake disc or brake pads.
